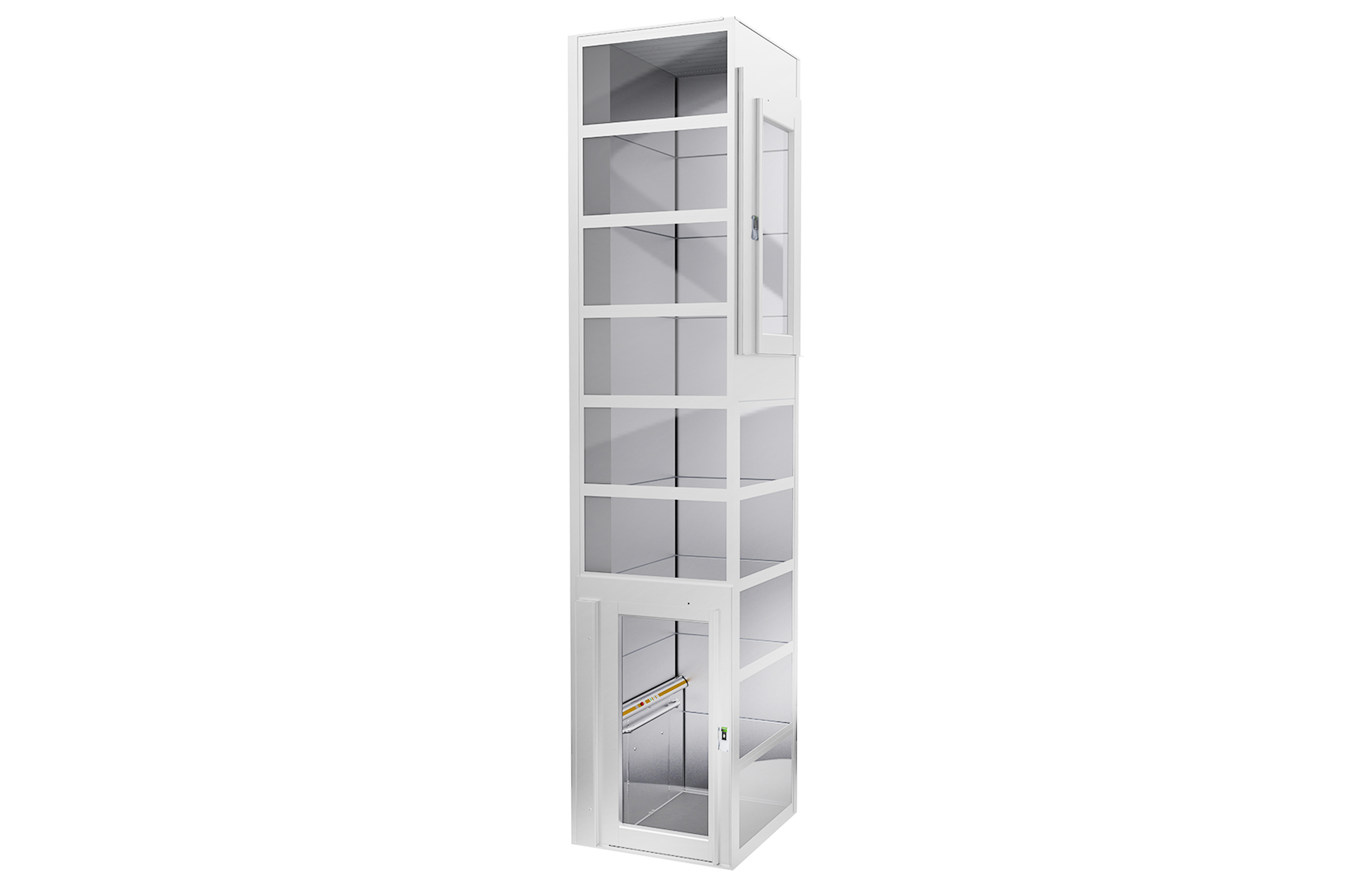

Orka 200

Home Lift
Up to

6 Floors/ 20 Meters

Max Power

2200 W

Load Capacity

400 Kg

Orka 200

Home Lift

Up to

6 Floors/ 20 Meters

Max Power

2200 W

Load Capacity

400 Kg

Lift Component

Our Orka 200 Home Lift consists of several components that are interconnected to ensure the safety of every user,
with European standard high quality materials making each side of the elevator firmly attached for smooth movement.

Full Customized Design

ORKA 200 Home lift is easy to fit into any home in anywhere.
Minimum construction needed. For standard case need only 5cm Pit
and hole through from floor to floor.

Lift Component

Our Orka 200 Home Lift consists of several components that are interconnected to ensure the safety of every user, with European standard high quality materials making each side of the elevator firmly attached for smooth movement.

Full Customized Design

ORKA 200 Home lift is easy to fit into any home in anywhere. Minimum construction needed. For standard case need only 5cm Pit and hole through from floor to floor.

New Model Interior Design

_____



New Model Interior Design
_____



Its A Platform Lift

lift designed in platform that function have changed the way we think of lift. Thanks to its unique design that made this lift very easy to install and very low cost to maintain.
Our ORKA 200 platform is made with a frame structure and strong components make this lift safe to use (max 500 KG).

Suitable for Home

Our Orka 200 home lift  can be installed into existing building or in its own in-build shaft which is constructed of special multilayered steel sandwich type panels or glass panels. A maximum of three doors may be installed on each floor with either left or right swing.

Lift Component

Our Orka 200 Home Lift consists of several components that are interconnected to ensure the safety of every user, with European standard high quality materials making each side of the elevator firmly attached for smooth movement.

Lift Component

Our Orka 200 Home Lift consists of several components that are interconnected to ensure the safety of every user, with European standard high quality materials making each side of the elevator firmly attached for smooth movement.

Model & Options

Standard Model Panel & Single Swing Door Automatic/Manual

The Orka 200 lift uses a standard panel model, equipped with a single swing door, with a manual or automatic swing. The lift body can also use glass or standard panels.

Full LED Panel & Single Swing Doors Automatic/Manual

The Orka 200 lift uses a Full LED panel model, equipped with a single swing door, with a choice of manual or automatic swing. The lift body can also use glass or standard panels.

Full LED Panel & Double Swing Doors Automatic Only

The Orka 200 lift uses a Full LED panel model, equipped with double swing doors, there is a choice of manual or automatic swing. The lift body can also use optional panoramic glass.

Model & Options

Standard Model Panel & Single Swing Door Automatic/Manual

The Orka 200 lift uses a standard panel model, equipped with a single swing door, with a manual or automatic swing. The lift body can also use glass or standard panels.

Full LED Panel & Single Swing Doors Automatic/Manual

The Orka 200 lift uses a Full LED panel model, equipped with a single swing door, with a choice of manual or automatic swing. The lift body can also use glass or standard panels.

Full LED Panel & Double Swing Doors Automatic Only

The Orka 200 lift uses a Full LED panel model, equipped with double swing doors, there is a choice of manual or automatic swing. The lift body can also use optional panoramic glass.

ENVIRONMENT

Indoors and outdoors

RATED LOAD

Up to 400 kg / 5 persons

TRAVEL HEIGHT

Up to 20 metres

PLATFORM DIMENSIONS (X x Y, mm)

*available custom dimensions
1100 x 1400
1070 x 1485
1150 x 1485

DOOR CLEARANCE (width x height, mm)

*available other dimensions
900 x 2000 (with 1100 x 1400 platform)
940 x 2000

DOOR CONFIGURATION

Right or left swing, up to 3 doors per landing

STANDARD COLORS

*any RAL color available as option

POWER SUPPLY

220-230 V, 1 phase, 25A; 380-400 V, 3 phase, 16A, 50 or 60 Hz

NOISE LEVEL

Less than 70 dB

TECHNICAL SAFETY EQUIPMENT

Safety edge around the platform,
emergency STOP buttons,
electronic speed control, overload detector,
opening control of doors and locks,
electronic control of engine performance

DRIVE SYSTEM

Screw-driven

SPEED

0.15 m/sec (9m/min)

LANDINGS

Up to 6

SHAFT DIMENSIONS (M x N, mm)

*available custom dimensions
1500 x 1460
1460 x 1540
1540 x 1540

GATE (width x height, mm)

900 x 1300 (with 1100 x 1400 platform)
940 x 1300

SHAFT WALLS

Aluminium profiles with glass or steel panels

SOFT START/STOP

Comes as a standard

MOTOR

2.2 kW

CONTROL SYSTEM

Micro computer based

_________________

ENVIRONMENT

Indoors and outdoors

RATED LOAD

Up to 400 kg / 5 persons

TRAVEL HEIGHT

Up to 20 metres

PLATFORM DIMENSIONS (X x Y, mm)

*available custom dimensions
1100 x 1400
1070 x 1485
1150 x 1485

DOOR CLEARANCE (width x height, mm)

*available other dimensions
900 x 2000 (with 1100 x 1400 platform)
940 x 2000

DOOR CONFIGURATION

Right or left swing, up to 3 doors per landing

STANDARD COLORS

*any RAL color available as option

POWER SUPPLY

220-230 V, 1 phase, 25A; 380-400 V, 3 phase, 16A, 50 or 60 Hz

NOISE LEVEL

Less than 70 dB

TECHNICAL SAFETY EQUIPMENT

Safety edge around the platform,
emergency STOP buttons,
electronic speed control, overload detector,
opening control of doors and locks,
electronic control of engine performance

DRIVE SYSTEM

Screw-driven

SPEED

0.15 m/sec (9m/min)

LANDINGS

Up to 6

SHAFT DIMENSIONS (M x N, mm)

*available custom dimensions
1500 x 1460
1460 x 1540
1540 x 1540

GATE (width x height, mm)

900 x 1300 (with 1100 x 1400 platform)
940 x 1300

SHAFT WALLS

Aluminium profiles with glass or steel panels

SOFT START/STOP

Comes as a standard

MOTOR

2.2 kW

CONTROL SYSTEM

Micro computer based
